Pipe FittingPipe Fittings

The following pipe fittings are stock items for Swiss Precision. Threads meet ANSIB2.1 for tapered pipe threads (NPT). They are compatible with all piping systems.

  • Adapters are 316 stainless steel construction
  • All items are electropolished and have a brilliant appearance
  • All items are individually packaged and labeled for ease of use.
Female Tube Adapter to Pipe NPT (standard long [body length])
Tube OD 5/32 Female Pipe Thread 1/8-27 Part TA-27-53
Tube OD 3/16 Female Pipe Thread 1/8-27 Part TA-27-31
Tube OD 5/32 Female Pipe Thread 1/8-18 Part TA-18-53
Tube OD 3/16 Female Pipe Thread 1/8-18 Part TA-18-31
Male Tube Adapter to Pipe NPT
Tube OD 5/32 Male Pipe Thread 1/8-27 Part TA-27-53-M
Tube OD 3/16 Male Pipe Thread 1/8-27 Part TA-27-31-M
Tube OD 1/4 Male Pipe Thread 1/8-27 Part TA-27-14-M
Tube OD 5/32 Male Pipe Thread 1/8-18 Part TA-18-53-M
Tube OD 3/16 Male Pipe Thread 1/8-18 Part TA-18-31-M
Tube OD 1/4 Male Pipe Thread 1/8-18 Part TA-18-14-M

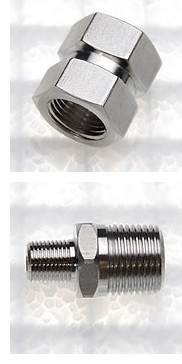

Hex Reducing Coupling
Female Pipe Size 1/4-18 Reduced Pipe 1/8-27 Part HRC-14-18
Female Pipe Size 3/8-18 Reduced Pipe 1/4-18 Part HRC-38-14
Female Pipe Size 3/8-18 Reduced Pipe 1/8-27 Part HRC-38-18
Hex Coupling
Female Pipe Size 1/4-18 to 1/4-18 Part HC-18
Female Pipe Size 1/8-27 to 1/8-27 Part HC-27
Hex Reducing Nipple
Male NPT 1/8-27 Reduced NPT 1/16-27 ID .125 OAL 1.015 Part HRN-18-11
Male NPT 1/4-18 Reduced NPT 1/8-27 ID .187 OAL 1.225 Part HRN-14-18
Male NPT 1/4-18 Reduced NPT 1/16-27 ID .125 OAL 1.225 Part HRN-14-11
Male NPT 3/8-18 Reduced NPT 1/4-18 ID .281 OAL 1.437 Part HRN-38-14
Male NPT 3/8-18 Reduced NPT 1/8-27 ID .187 OAL 1.250 Part HRN-38-18
Male NPT 3/8-18 Reduced NPT 1/6-27 ID .125 OAL 1.225 Part HRN-38-11

Contact us via the Web or phone 800-440-7407
